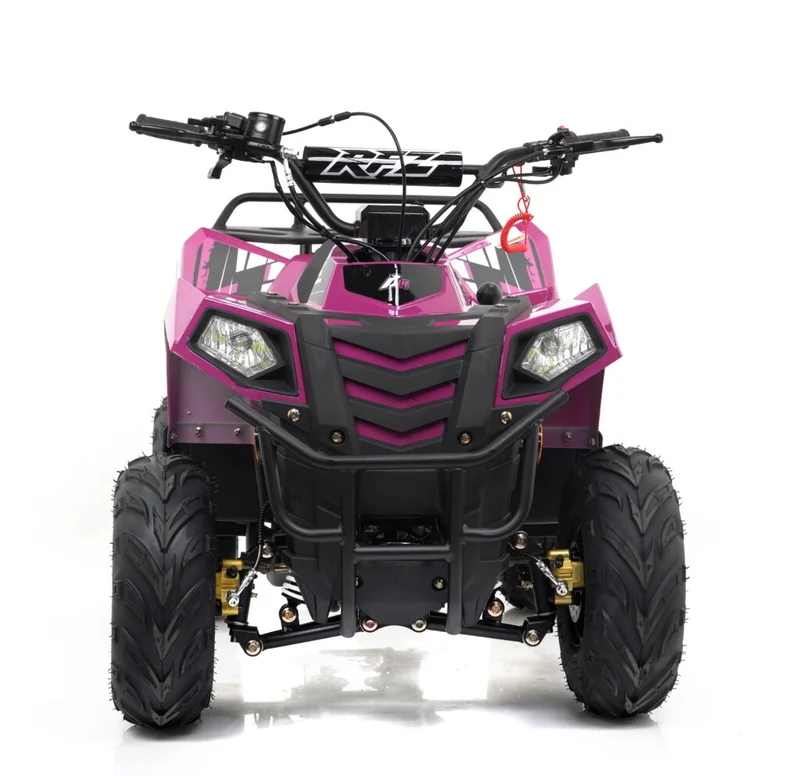

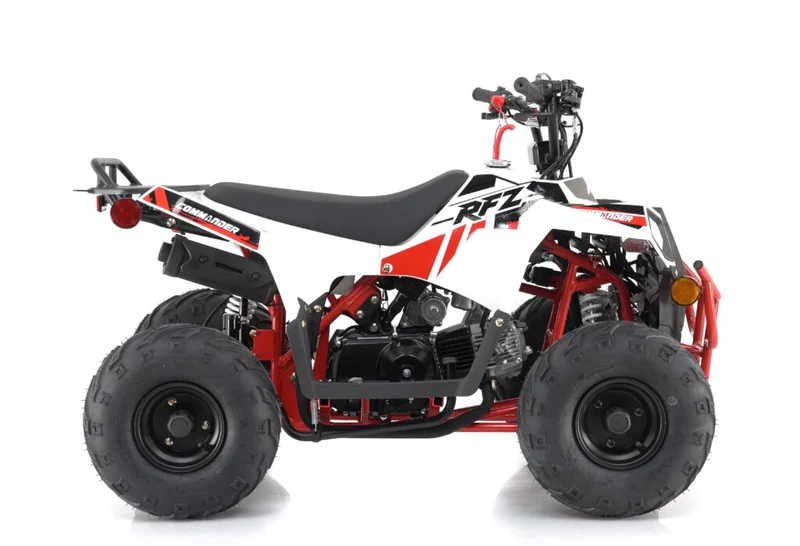

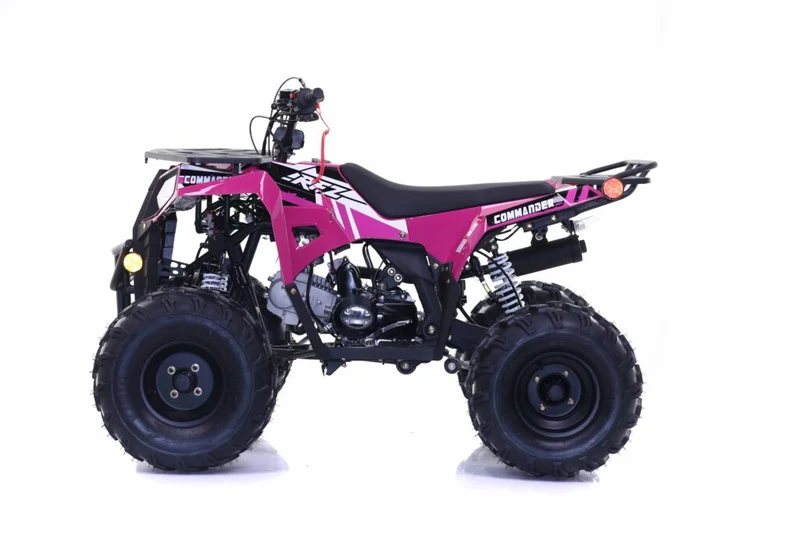

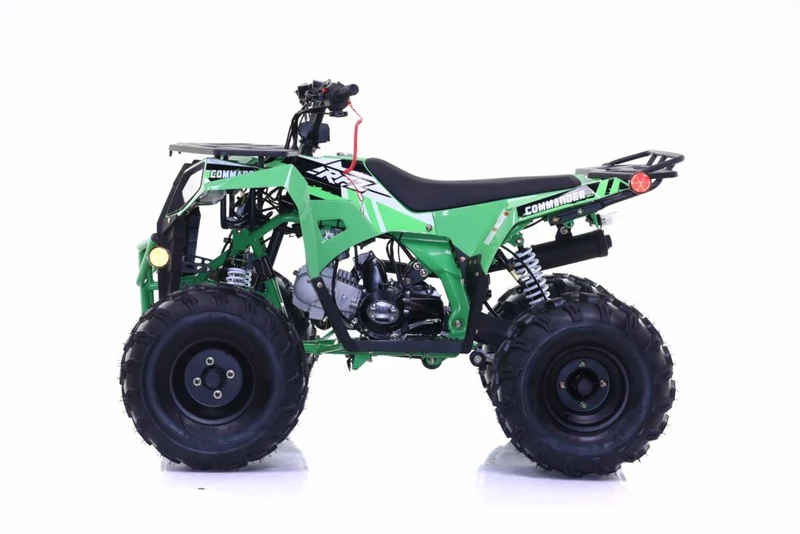

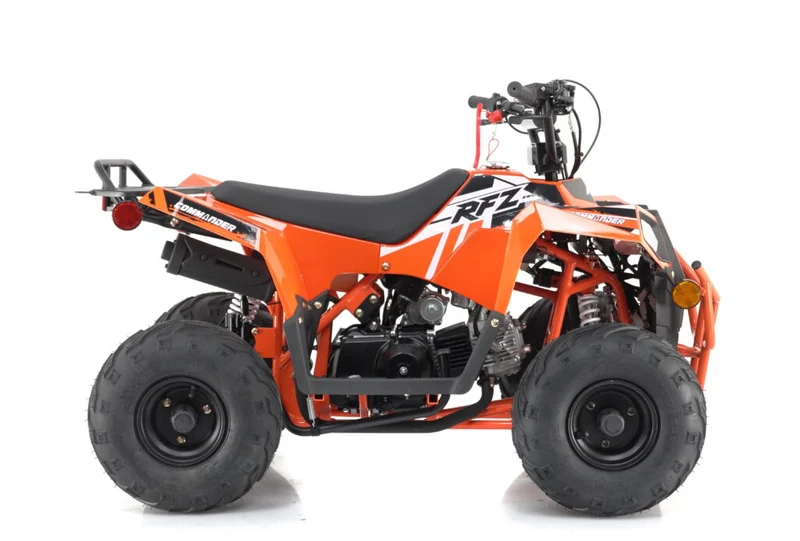

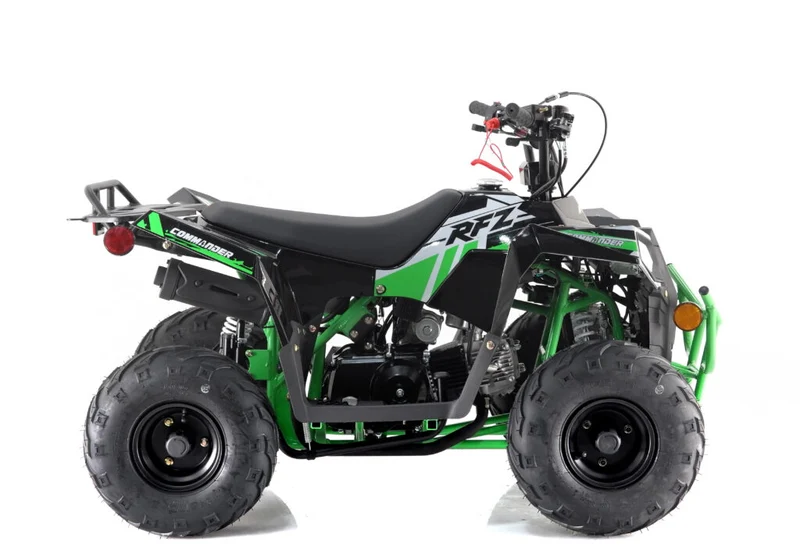

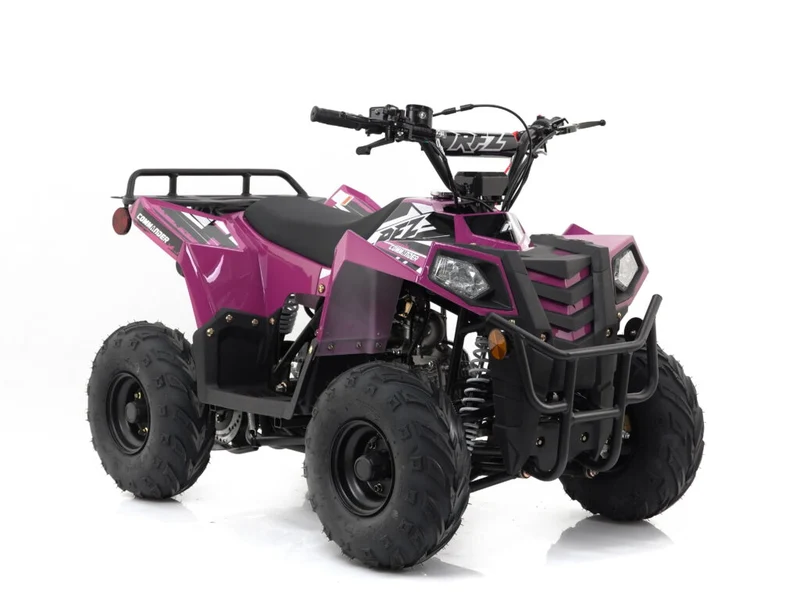

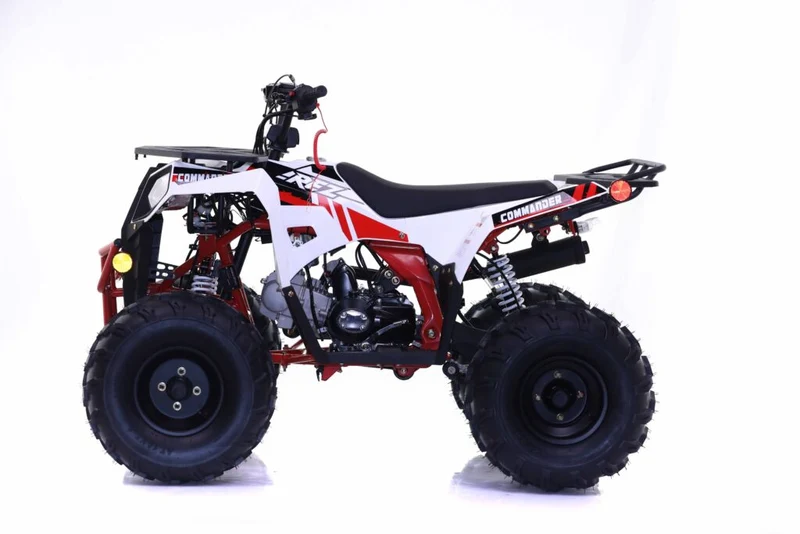

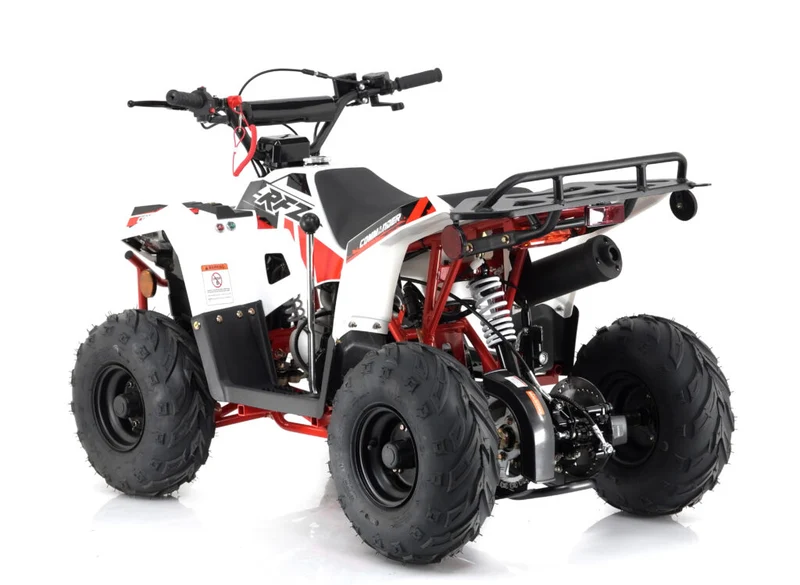

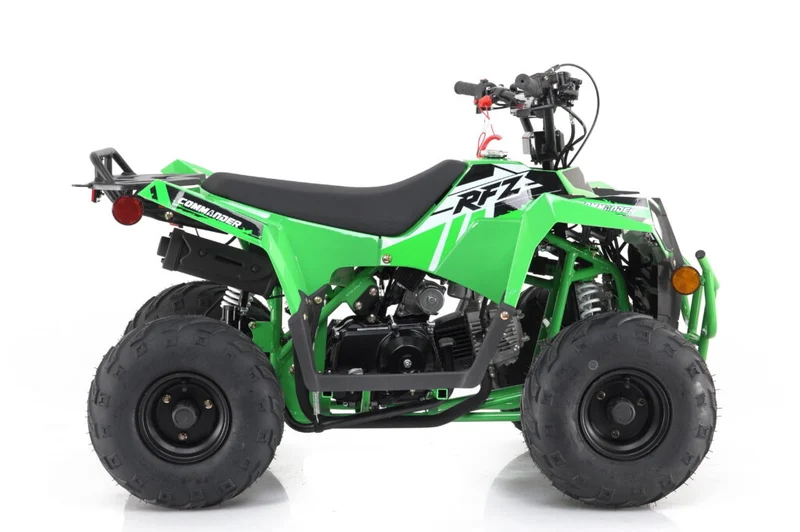

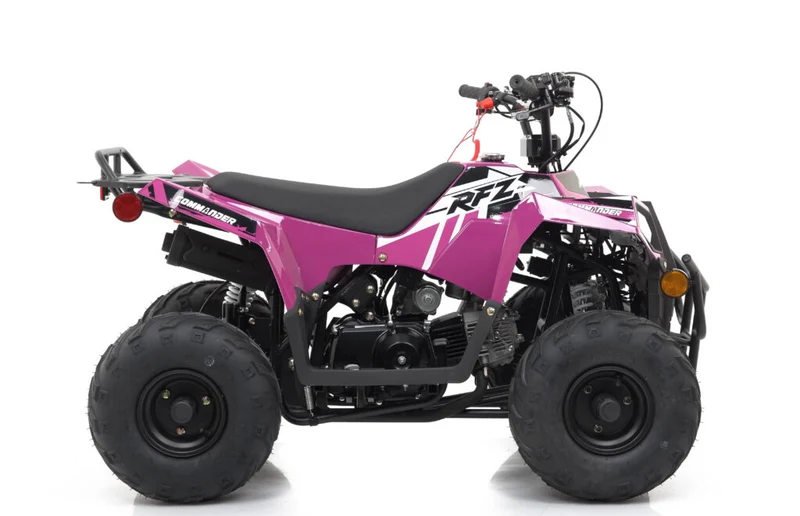

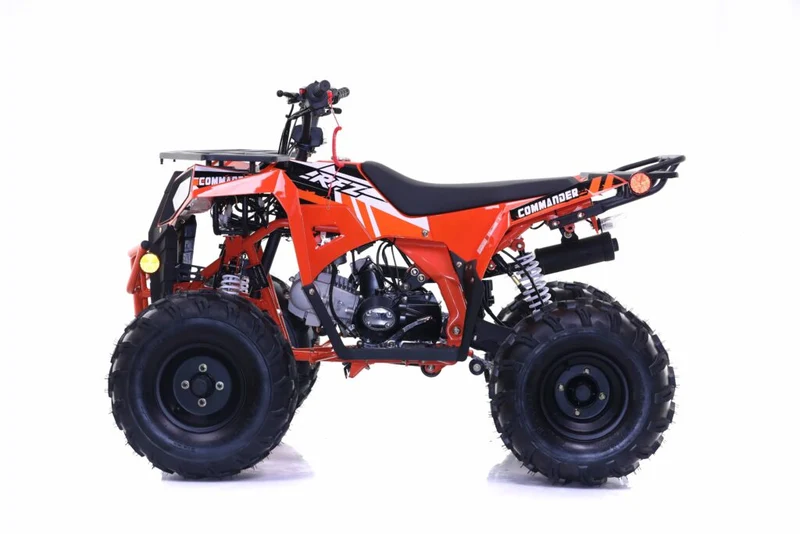

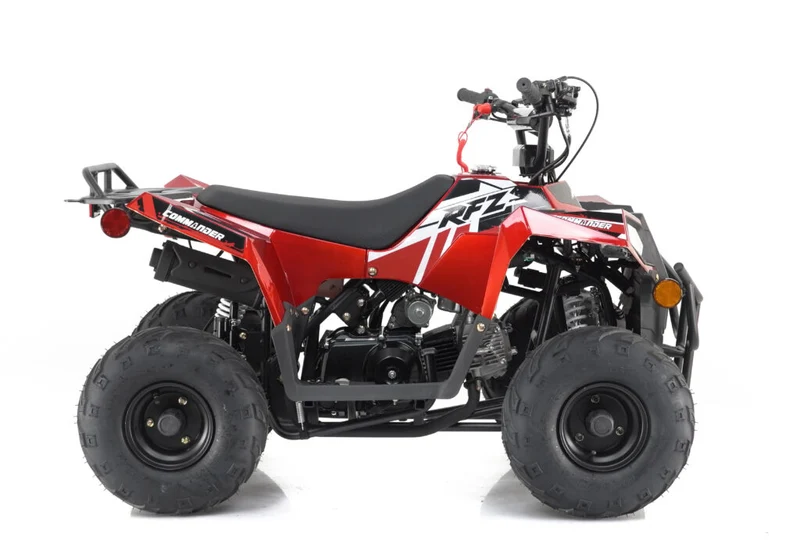

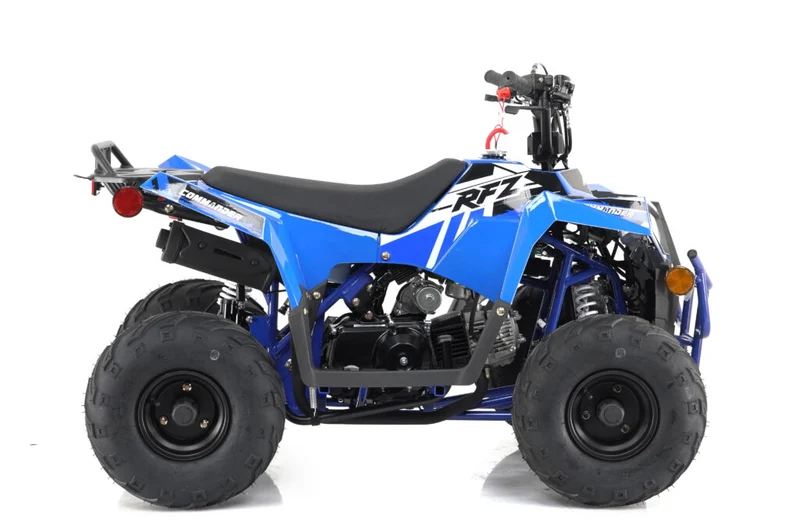

Apollo MINI COMMANDER 110cc ATV

Apollo Mini Commander 110cc Youth ATV

Semi-Automatic 1+Reverse • Hydraulic Disc Brakes • Electric Start • Beginner Youth Platform

The Apollo Mini Commander 110cc ATV (AGA-10) is a compact youth entry-level off-road quad designed for younger riders beginning their ATV experience under supervision. Featuring a semi-automatic transmission with reverse, front and rear hydraulic braking, and a lightweight chassis footprint, the Mini Commander delivers predictable control for early-stage riding development.

Its smaller frame geometry, lower seat height, and controlled speed profile make it an ideal introduction platform before progressing into mid-size youth ATVs like the Vitacci Rider 9 and Rider 10 in your ShopRoketa lineup.

ENGINE

Engine Type: Single Cylinder 4-Stroke Air-Cooled
Displacement: 106.7cc

Bore × Stroke: 52.4mm × 49.5mm

Maximum Power Output: 5.0 kW @ 7,500 RPM
Maximum Torque: 7.0 Nm @ 5,500 RPM

Ignition System: CDI
Starting System: Electric Start

Fuel Requirement: RQ-93

Lubrication System: Pressure + Splash Lubrication
Recommended Engine Oil: SAE 15W-40

Designed for controlled beginner youth riding performance.

TRANSMISSION & DRIVE SYSTEM

Transmission Type: Semi-Automatic

Drive Modes:

Forward
Reverse

Final Drive: Chain Drive

Supports early rider progression without requiring manual clutch coordination.

BRAKING SYSTEM

Front Brakes: Hydraulic Disc (Hand Lever)
Rear Brakes: Hydraulic Disc with Parking Brake (Foot Pedal)

Provides stronger stopping control than drum-brake entry youth platforms.

SUSPENSION & CHASSIS

Front Suspension: Youth Utility Geometry
Rear Suspension: Solid Rear Axle Platform

Designed for predictable handling across property riding environments and beginner trails.

DIMENSIONS & CAPACITY

Vehicle Dimensions:

Length: 1200 mm
Width: 745 mm
Height: 785 mm

Wheelbase: 805 mm
Ground Clearance: 90 mm
Seat Height: 580 mm

Front Track Width: 615 mm
Rear Track Width: 550 mm

Curb Weight: 86 kg
Net Shipping Weight: 75 kg
Gross Shipping Weight: 88 kg

Rated Load Capacity: 70 kg

Compact proportions support early rider maneuverability and safety confidence.

WHEELS & TIRES

Front Tires: 145/70-6
Rear Tires: 145/70-6

Front Rim: Steel
Rear Rim: Steel

Recommended Tire Pressure:

Front: 10 PSI
Rear: 10 PSI

Youth-scale tire sizing improves stability at lower riding speeds.

PERFORMANCE PROFILE

Maximum Speed: 24 km/h (approx. 15 MPH)
Maximum Gradeability: 10°
Minimum Turning Radius: 2500 mm

Optimized for supervised beginner off-road learning environments.

QUICK SPEC SUMMARY

Engine: 110cc 4-Stroke Air-Cooled
Transmission: Semi-Automatic (Forward + Reverse)
Drive Type: Chain Drive
Start System: Electric Start
Front Brakes: Hydraulic Disc
Rear Brakes: Hydraulic Disc with Parking Brake
Seat Height: 580 mm
Ground Clearance: 90 mm
Max Speed: 24 km/h
Load Capacity: 70 kg

IMPORTANT RIDER & DELIVERY INFORMATION

👉🏽 AGE REQUIREMENT: (Y6+) Recommended for riders 6 years old and up with adult supervision

👉🏽 ASSEMBLY REQUIRED: This unit ships crated in a factory box and requires setup before operation. Assembly typically includes handlebars, wheels (if applicable), battery connection, racks, and inspection prior to riding.

👉🏽 OFF-ROAD USE NOTICE: This vehicle is designed for off-road use only unless.

👉🏽 FREIGHT DELIVERY INFORMATION:
This vehicle ships via a freight carrier and delivery is made to the customer’s driveway or curbside depending on accessibility. Someone must be available to receive and inspect the shipment at time of delivery.

👉🏽 INSPECTION UPON DELIVERY:
Please inspect packaging and unit condition at delivery and note any visible damage with the freight carrier before signing.
