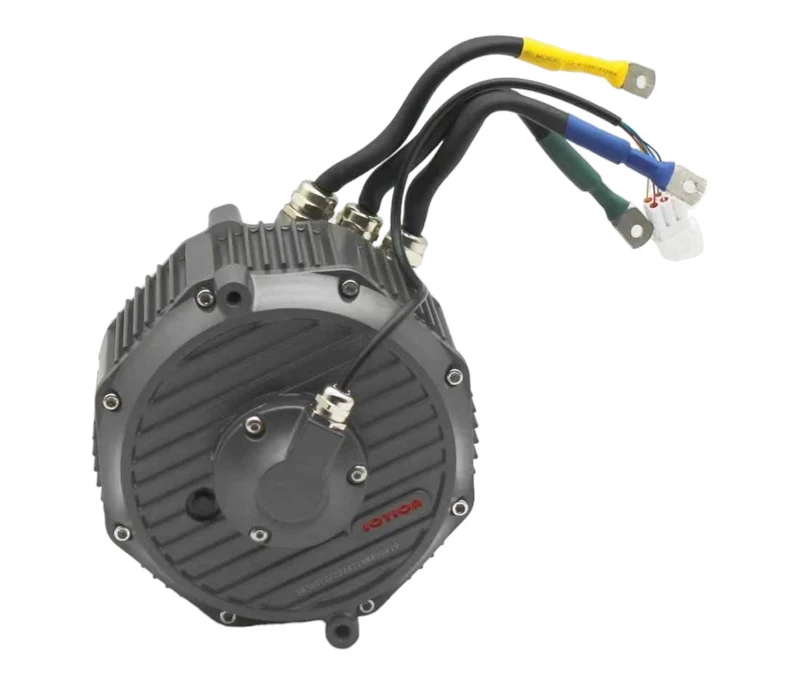

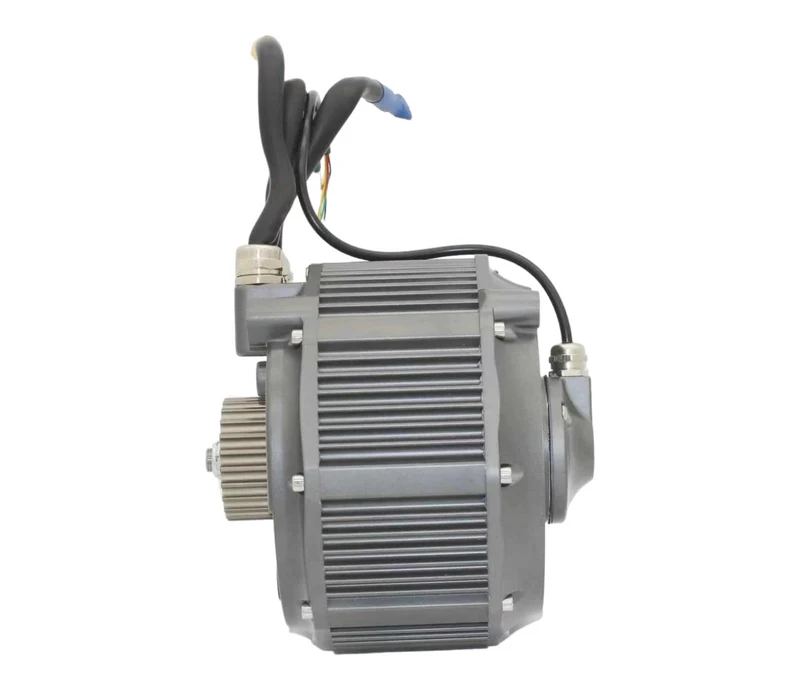

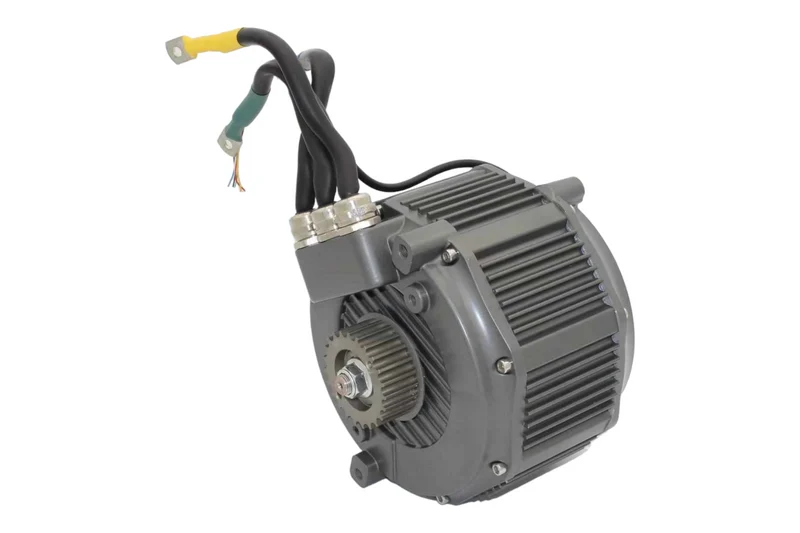

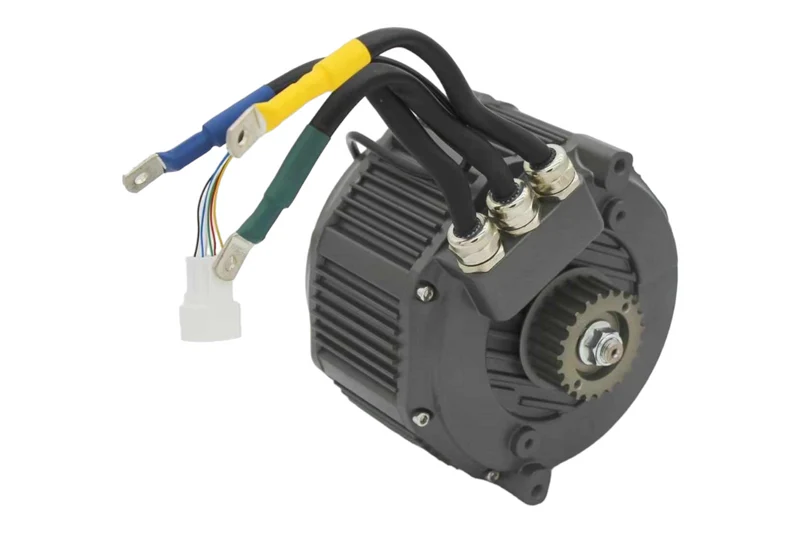

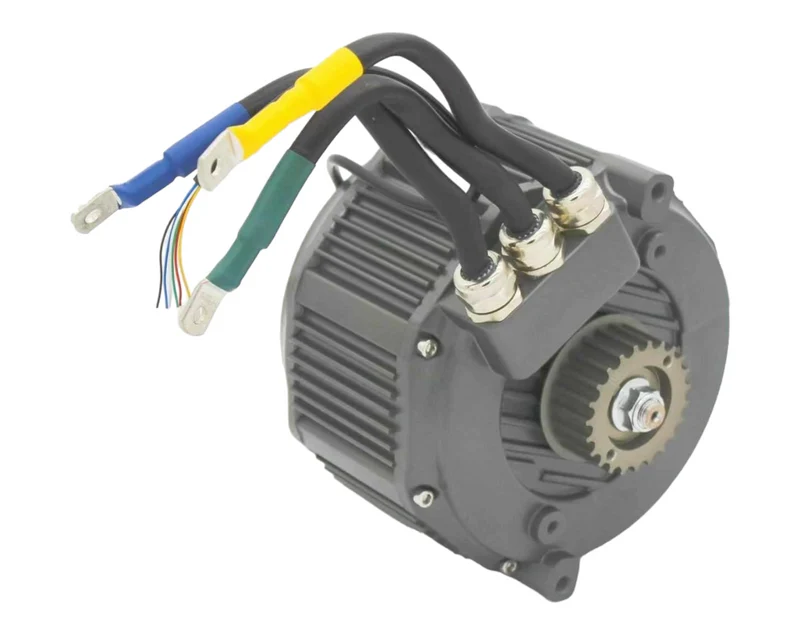

Sotion Surron Motor (Special Order)

Product Model: FW01

Motor Specifications:

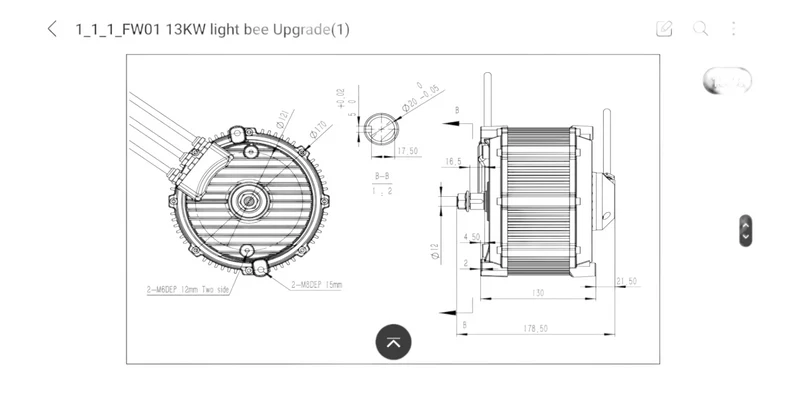

• Motor Size: 4180 x 145 mm
• Motor Weight: 11 kg
• Appearance Color: Silver
• Installation Position: Mid

Electrical Specifications:

• Rated Voltage: 72V
• Rated Power: 13 kW
• Peak Power: 26 kW
• Rated Torque: 22 N·m
• Peak Torque & Peak Phase Current: 65 N·m & 800A
• Rated Speed: 5200 RPM
• Peak Speed: 9000 RPM
• Maximum Efficiency: 293%
• Transmission Ratio: 1/3
• Number of Pole Pairs: 5

Sensors & Protection:

• Position Sensor: Encoder (1. ABZ, 2. UVW, 3. Sin/Cos) - Default: ABZ
• Temperature Sensor: NTC
• Insulation Class: F (155°C)
• Protection Grade: IP65
• Transmission Form: Gear Drive
• Cooling Method: Natural Air Cooling
